Necessary to connect the air terminal receiver to the mast. Facilitates the connection of the head to the conducting network. It is possible to set any model of air terminal:
- ESE Lightning rod
- Franklin
Characteristics
- Made of Cu/Zn alloy (brass).
- Stainless steel hardware.
- Easy assembly.
- Safety fixing with 2 M8 screws.
- Corrosion resistance and guaranteed durability, through the use of materials such as brass and stainless steel.
Download data sheet

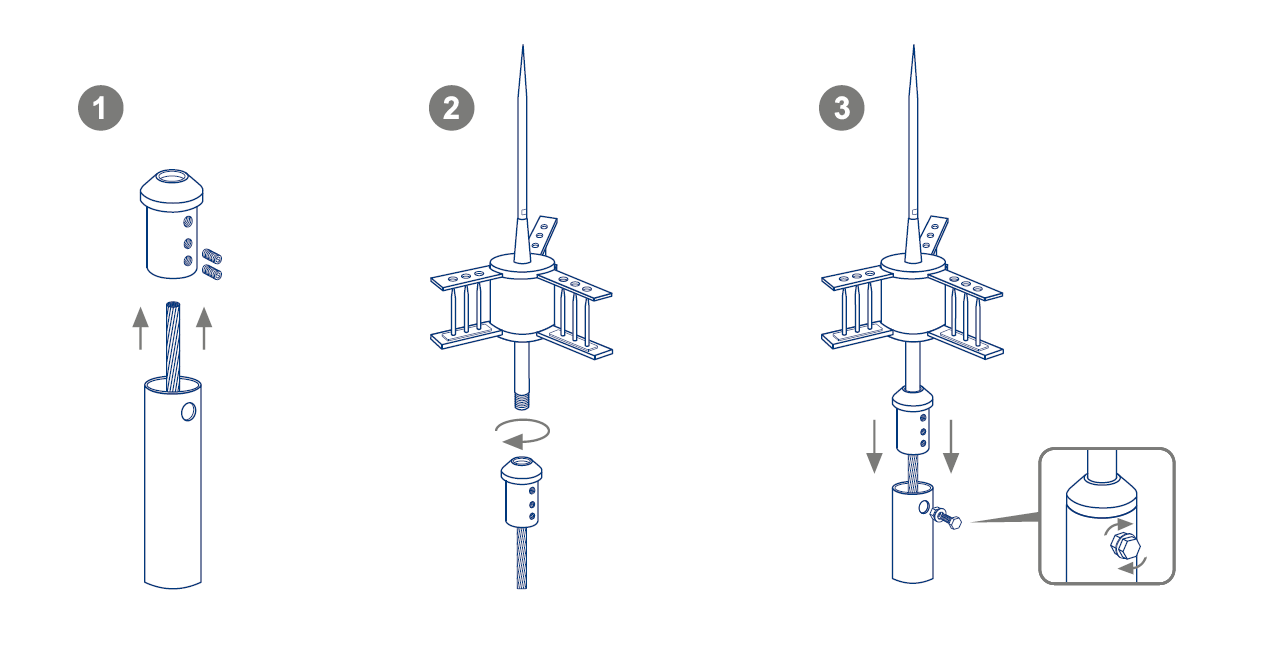

Head - Mast adapter - Fixing the cable conductor or tape with allen M8 screws for cable model, and two hexagonal head screws for tape model.
- Insertion of the air terminal shaft with M16x1,5 thread.
- Insertion of mast by the bottom and fixing with an hexagonal head the mast, the adapter head-mast and the air terminal shaft.
